苏州托普特种升降机械有限公司
|

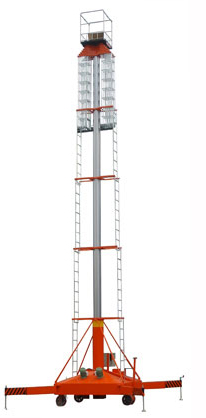

全新设计,双梯防转结构,双速下降系统,最大升高35米,稳定、可靠、美观、操作简便是GTC-B型液压升降机的最大特点。
GTC-B double-ladder stop type
Novel design, double-ladder stop structure, double-speed descending system, max. rising height 35m.Stable, reliable, pleasing in appearance, easy op-eration are the advantageous features of GTC-Bmodel hydraulic elevator.
型 号
Model |
平台最大高度
Pladorm Max Height (m) |
外型尺寸
Overall Size (m) |
承载能力
Load capability (kg) |
起升速度
Rising Speed (m/s) |
抗风能力
Wind Capability (级) |
台尺寸
Platform Size (m) |
电机功率
Motor Power (kw) |
电源电压
Voltage (v) |
整机重量
Weight (kg) |
GTC-16B
|
16
|
1.70×1.39×2.36
|
200
|
0.036
|
5
|
0.8×0.8
|
1.5
|
220
|
1350
|
GTC-18B
|
18
|
1.78×1.47×2.65
|
200
|
0.036
|
5
|
0.8×0.8
|
1.5
|
220
|
1430
|
GTC-20B
|
20
|
1.78×1.56×2.65
|
150
|
0.042
|
5
|
0.8×0.8
|
1.5
|
220
|
1650
|
GTC-21B
|
21
|
1.78×1.56×2.75
|
150
|
0.04
|
5
|
0.8×0.8
|
1.5
|
220
|
1700
|
GTC-22B
|
22
|
1.97×1.65×2.70
|
150
|
0.035
|
5
|
0.8×0.8
|
1.5
|
220
|
1850
|
GTC-23B
|
23
|
1.97×1.65×2.80
|
150
|
0.03
|
5
|
0.8×0.8
|
1.5
|
220
|
2000
|
GTC-25B
|
25
|
2.05×1.75×2.95
|
150
|
0.03
|
5
|
0.8×0.8
|
1.5
|
220
|
2300
|

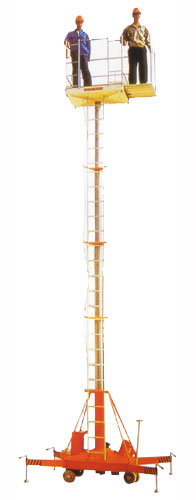

为“神舟”号飞船按装对接特制的GTC—F型平台外伸式液压升降机
GTC-F platform overhang type
It is a GTC-F model platform overhang hydraulic elevator whicl is specially manufactured for "Magic Aeroboat" Spaceboat in stallation butting.
一组GTC—F型液压升降机在“神舟”号飞船试验对接现场工作。
A group of GTC-F model hydraulic elevator isworking on "Magic Boat" aeroboat experimentalbutting site.
型 号
Model |
平台最大高度
Pladorm Max Height (m) |
外型尺寸
Overall Size (m) |
承载能力
Load capability (kg) |
起升速度
Rising Speed (m/s) |
抗风能力
Wind Capability (级) |
台尺寸
Platform Size (m) |
电机功率
Motor Power (kw) |
电源电压
Voltage (v) |
整机重量
Weight (kg) |
GTC-6F
|
6
|
1.16×0.92×2.00
|
200
|
0.044
|
5
|
0.9×1.0
平台外伸0.5 |
1.1
|
220
|
700
|
GTC-8F
|
8
|
1.16×1.00×2.15
|
200
|
0.04
|
5
|
1.1
|
220
|
800
|
|
GTC-10F
|
10
|
1.36×1.15×2.30
|
200
|
0.03
|
5
|
1.1
|
220
|
950
|
|
GTC-12F
|
12
|
1.40×1.23×2.40
|
200
|
0.028
|
5
|
1.1
|
220
|
1100
|
